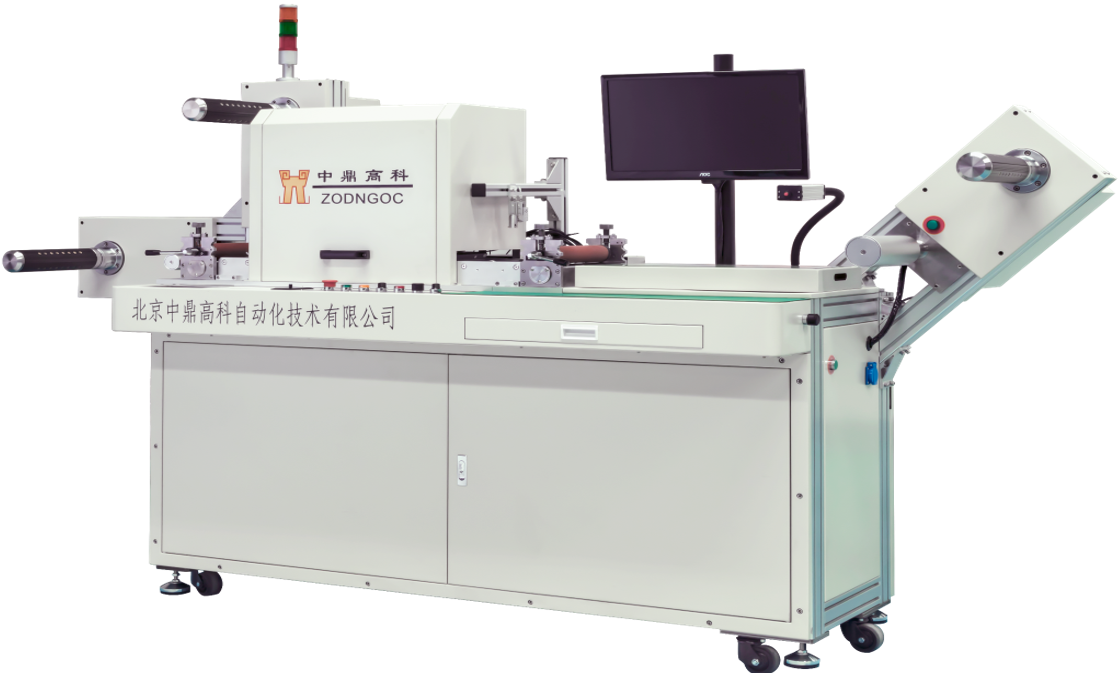

Product inspection machine

1. Operating system: 21-inch touch HMI panel on swing arm with separate rail mounted consoles for easy operator access.

2. Self-developed control system, function customization can be realized.

3. Synchronous control system for die cutting with short synchronous period and quick response.

4. With the function of Storing all process parameters for each product, and flexible call.

5. Maximum cutting speed of 20 meters/min (200 ft/min).

6. Maximum material width of 200 mm (10”).

7. Each set of die cutting station is controlled by certain servo drive for start, stop, forward, reverse, synchro, scale, trimming functions.

8. Each set of material shafts is driven by a separate servo system, which is used for receiving, discharging, changing direction, and anthropomorphic start-up.

9. With rectification function: automaticallyadjust the Y direction of the main feed axis.

10. The die-cutting tool speed can be easily adjusted independently.

11. The chip and meter alarm stop function can automatically control the device to stop according to the set quantity.

12. Each receiving and discharging axis can select automatic constant tension control or constant torque control mode respectively.

13. Island placement modules available, registered dispensing of smaller die cut components onto other components, or pre-printed web features, minimizes material waste.

14. Each of the retractable material shafts is equipped with a one-button start/stop button, which is more convenient for the operator to refuel the operation.

15. Effective visual field of dimension measurement is 40mm*40mm, more than 10 dimensions can be measured at the same time

16. The surface defect such as hole blocking, foreign body deformation, glue missing, glue leakage and waste discharge

17. The effective visual field for defect detection is 160mm*150mm (larger than this visual field, different types of lenses are optional).

18. Processing mode of defective products: accurate position shutdown alarm and online markinghigh-speed accurate shutdown alarm, one-button high-speed recovery start after shutdown, online marking (optional)
